商品詳情

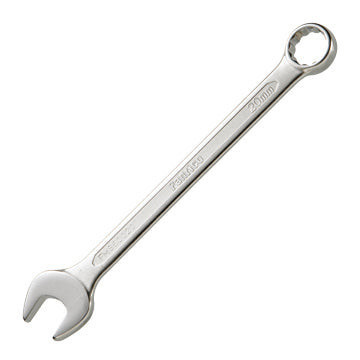

- 台灣製造複合式扳手(複合扳手 梅開扳手)
- 梅花端內圓角設計，增加與被旋轉螺母的接觸面積，可增加20%扭力
- 可保護被旋轉螺母異形開口設計，拆鎖螺帽更易於脫離、順手，更省時省力
- CR-V鉻釩鋼材質設計，更堅韌耐久
其他尺寸請另外詢問
| 產品編號 | 尺寸 | L | A | B | C | D |
| FM860006 | 6 | 102 | 15.7 | 10.4 | 3.6 | 4.5 |
| FM860007 | 7 | 112 | 17.2 | 11.6 | 4.0 | 4.9 |
| FM860008 | 8 | 122 | 19.6 | 12.8 | 4.5 | 5.3 |
| FM860009 | 9 | 132 | 21.5 | 14.6 | 4.7 | 5.7 |
| FM860010 | 10 | 140 | 23.8 | 16.2 | 4.9 | 6.6 |
| FM860011 | 11 | 150 | 25.6 | 17.5 | 5.0 | 6.9 |
| FM860012 | 12 | 160 | 27.4 | 18.4 | 5.4 | 7.2 |
| FM860013 | 13 | 170 | 29.6 | 19.8 | 5.9 | 7.7 |
| FM860014 | 14 | 180 | 31.7 | 21.6 | 6.2 | 8.6 |
| FM860015 | 15 | 190 | 33.2 | 23.1 | 6.5 | 8.7 |
| FM860016 | 16 | 200 | 34.7 | 24.5 | 6.6 | 8.9 |
| FM860017 | 17 | 210 | 36.8 | 25.8 | 6.7 | 8.9 |
| FM860018 | 18 | 220 | 38.8 | 26.9 | 7.1 | 9.9 |
| FM860019 | 19 | 230 | 40.8 | 28.6 | 7.4 | 10.3 |
| FM860020 | 20 | 240 | 43.0 | 29.7 | 7.6 | 10.5 |
| FM860021 | 21 | 250 | 45.3 | 31.8 | 7.8 | 11.0 |
| FM860022 | 22 | 260 | 46.6 | 32.7 | 8.0 | 11.7 |
| FM860023 | 23 | 270 | 47.7 | 33.5 | 8.4 | 11.9 |
| FM860024 | 24 | 280 | 50.4 | 35.9 | 8.5 | 12.2 |
| FM860025 | 25 | 290 | 52.5 | 36.9 | 8.8 | 12.3 |
| FM860026 | 26 | 300 | 53.0 | 38.2 | 9.0 | 12.4 |
| FM860027 | 27 | 310 | 53.3 | 38.5 | 9.2 | 12.5 |
| FM860028 | 28 | 320 | 56.6 | 40.5 | 9.3 | 12.6 |
| FM860029 | 29 | 330 | 59.0 | 41.4 | 9.5 | 12.8 |
| FM860030 | 30 | 340 | 62.3 | 43.9 | 9.9 | 13.2 |
| FM860032 | 32 | 360 | 65.7 | 45.7 | 10.3 | 14.0 |
| FM860033 | 33 | 380 | 69.2 | 50.2 | 11.6 | 15.7 |
| FM860034 | 34 | 380 | 69.2 | 50.2 | 11.6 | 15.7 |
| FM860035 | 35 | 410 | 74.6 | 54.3 | 13.2 | 18.5 |
| FM860036 | 36 | 410 | 74.6 | 54.3 | 13.2 | 18.5 |
| FM860038 | 38 | 440 | 77.0 | 57.0 | 14.4 | 19.0 |
| FM860041 | 41 | 460 | 83.6 | 61.3 | 14.5 | 21.5 |
| FM860042 | 42 | 460 | 83.6 | 61.3 | 14.5 | 21.5 |
| FM860043 | 43 | 460 | 83.6 | 61.3 | 14.5 | 21.5 |
| FM860044 | 44 | 500 | 89.3 | 63.9 | 15.0 | 21.7 |
| FM860045 | 45 | 500 | 89.3 | 63.9 | 15.0 | 21.7 |
| FM860046 | 46 | 500 | 89.3 | 63.9 | 15.0 | 21.7 |
| FM860048 | 48 | 540 | 97.0 | 73.5 | 16.9 | 23.1 |
| FM860050 | 50 | 540 | 97.0 | 73.5 | 16.9 | 23.1 |
單位：mm
